Fireproof HYDRA system panel fiber optic light

Hydra system includes of 4 parts:  light source & hydra light splitter & carrier tail & panel tail. The system are ready installed fiber cables, to make the installation of multiple panels easy

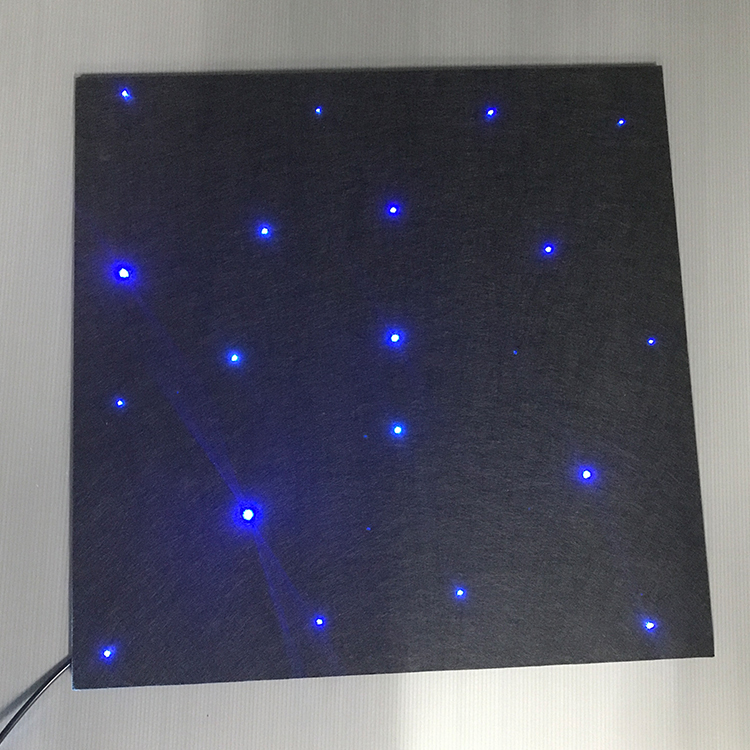

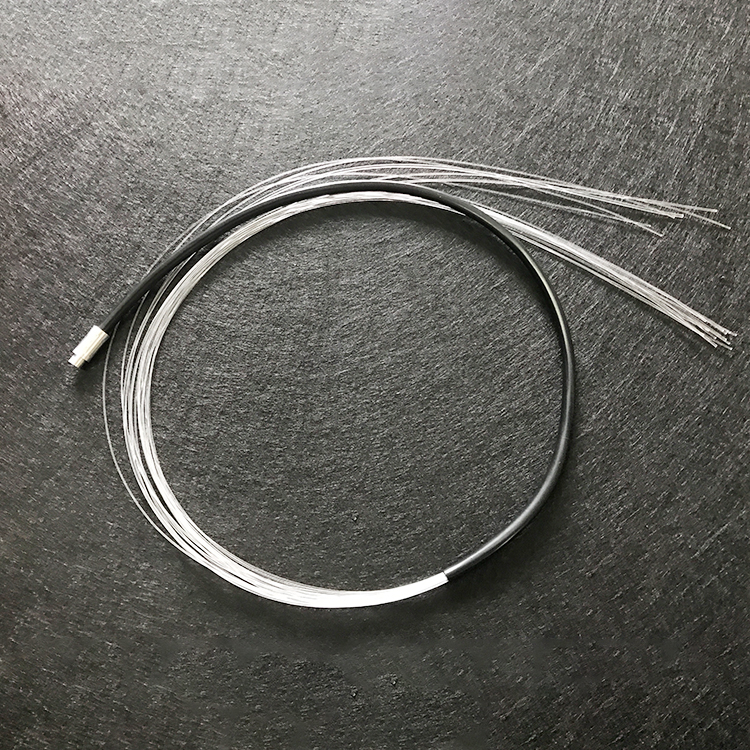

Panel tails
Each panel tails includes 19 points diameter fiberoptics, ready installed into 60x60cm panels. Mayki panels is fireproof, Sound absorption and there are a lot colors for option

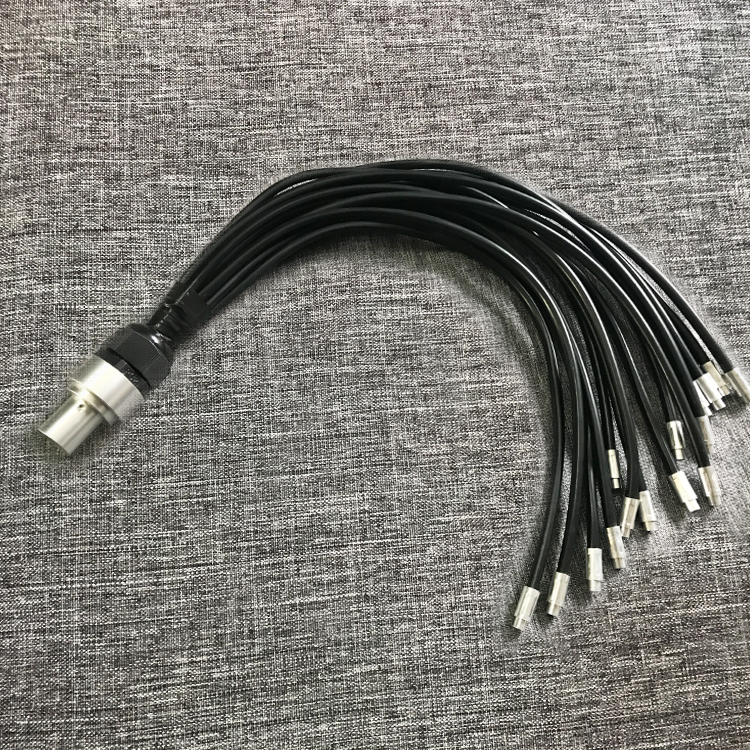

The hydra light splitter
Dia.18mm PG connector hold up to 15 streams fiberoptics

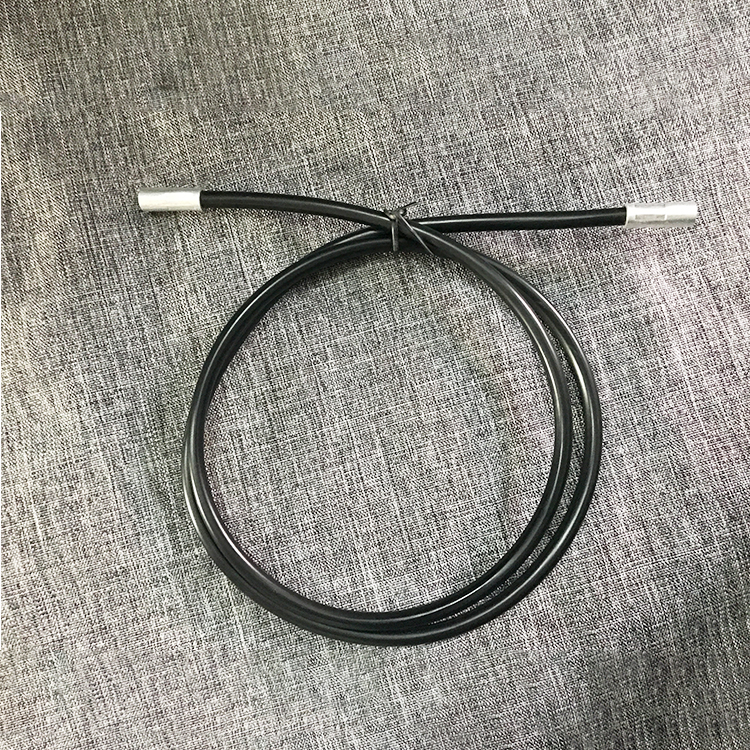

Carrier tail
A carrier tails of bundled sheathed fiber, which can be any length between 1meter and 8 meter, have similar ferrules at both of its ends. The carrier tails connect optical joint from end of panel tails and light splitter.

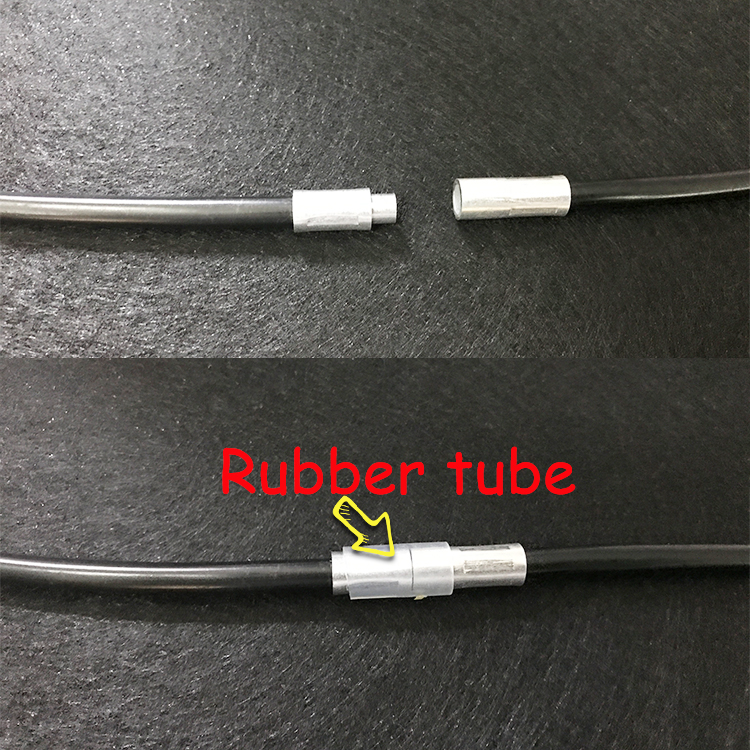

Optical Joint
Connect optical joints with rubber tube

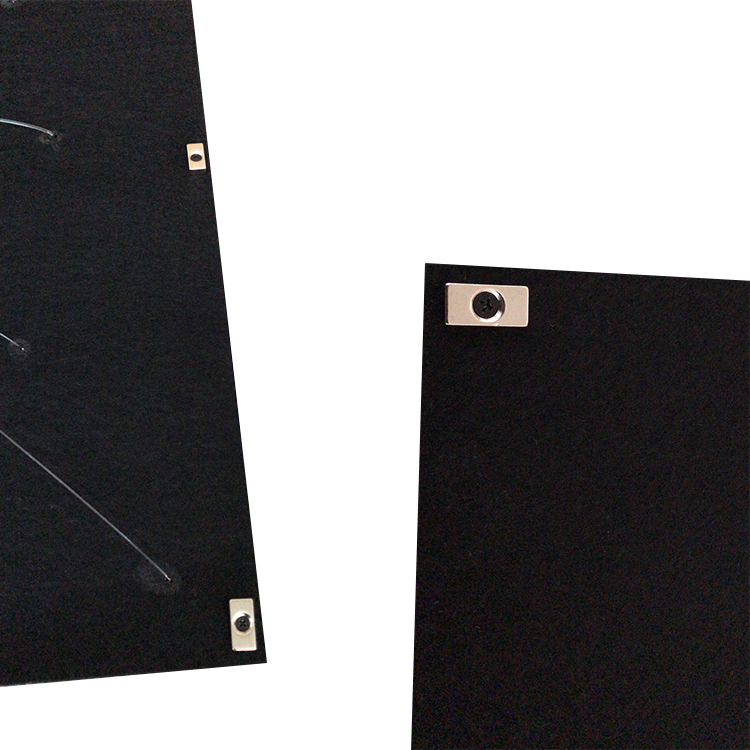

Each panel with 8 magnets, makes installation of multiple panels into ceiling easy. frame with magnets to fix the tile to ceiling the shelves should be use light-gauge steel members

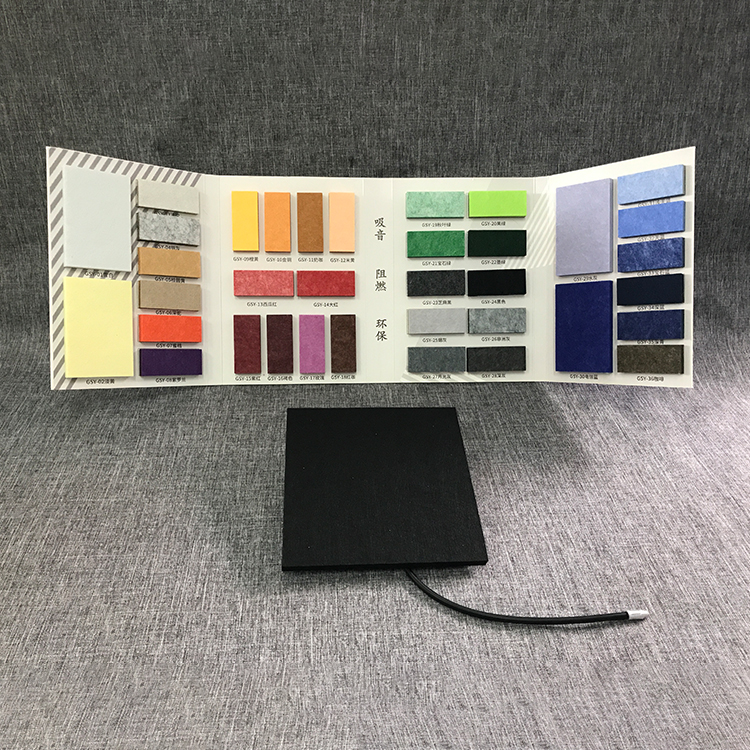

Colors of Panel for optional.
